KD11S

The KD11S is a new type of steel for cold-tool steel that has the same basic functions of the SKD11 and features remarkably improved machinability.


Features of KD11S
  1. Cost reduction
    Rationalizes the manufacturing processes.
    Reduces the machining time
  2. Thermal processing
    Unchanged thermal processing.
    Same-aged deterioration.
  3. Mold life
    Satisfactory mold live.
    Improved mold quality.

Outstanding machinability
  • Can prolong the service life of the tool and improve the machining efficiency.
  • Beautiful finished cut surface.

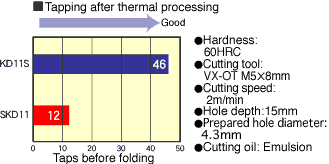

  • Capable of cutting after thermal processing.

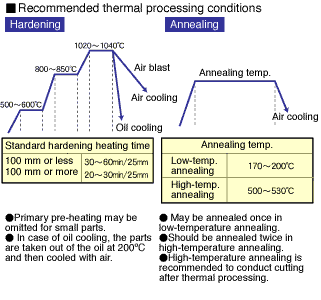

Same thermal processing conditions as SKD11.
  • Stack-thermal processing with the SKD11 is enabled.

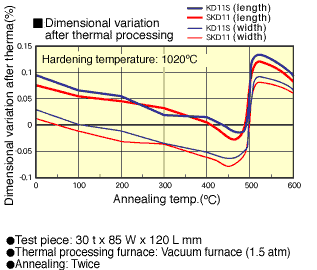

  • Same dimensional variation after thermal processing is the same as the SKD11.
  • Aged-deterioration and surface treatment are equivalent to the SKD11.

Equivalent or superior mechanical characteristics
  • Fatigue characteristics superior to the SKD11
  • Tenacity and wear-resistance superior to the SKD11
