KDAMAX

The KDAMAX is high-performance hot-tool steel for large-size dies that features superior crack resistance at the round corners of metal molds and crack resistance at water holes.

Features of KDAMAX

Superior heat-check resistance.
Superior heat-check resistance for complicated mold shapes.
Prolongs the service life at round corners of metal molds where complex stresses are centralized when manufacturing thin products.
Suppresses large cracks at the water holes.
Suppresses large cracks at the water holes due to embrittlement in water caused by rust.
Superior hardening performance.
Improves the hardening performance to suppress tenacity deterioration in large-size products.

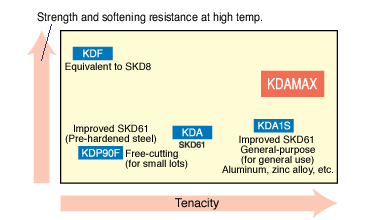

Applications		Position of KDAMAX

Die-casting molds Hot-forging molds Molds with complex shapes with projections and cavities Large-size molds

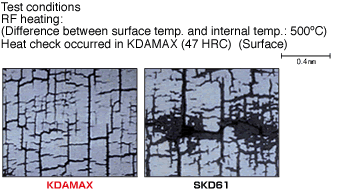

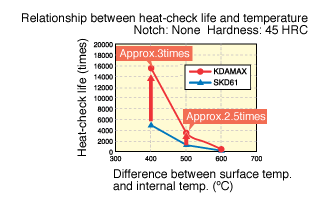

Heat-check resistance

1)Cracks in the KDAMAX are as shallow as 40% of those in the SKD61. 2) The width of cracks on the die surface expands slowly.

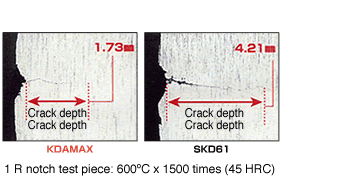

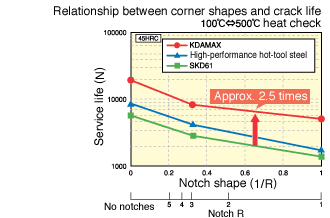

Crack resistance at R corners

1)Cracks in the KDAMAX are as short as 40% of those in the SKD61. 2) Cracks from the die surface to the water holes progress slowly.

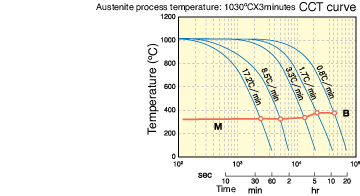

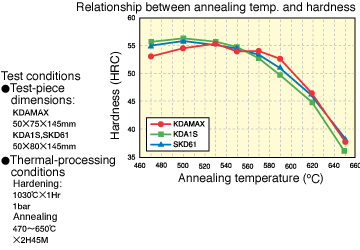

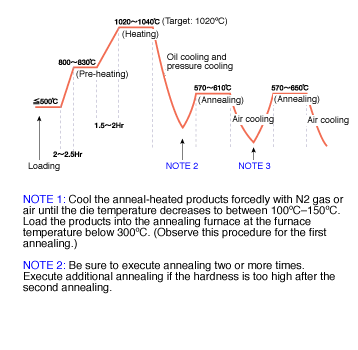

Thermal processing characteristics

In-water embrittlement resistance

The KDAMAX suppresses rust generation in water in comparison with the SKD61 and improved steel.

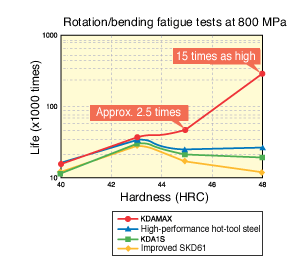

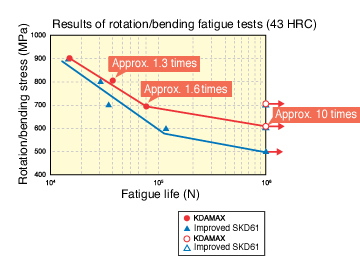

Fatigue resistance

Few cracks at the water hole of molds improve the service life by 1.3 to 10 times in comparison with the SKD61 and improved steel.

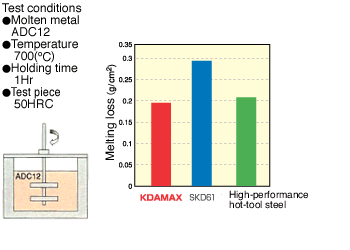

Melting-loss resistance

The KDAMAX has a 50% higher melting-loss performance than the SKD61.
