Gundrill
Gundrill
Standard Gundrill
- Standard delivery time 3weeks
- Regular types are ready for immediate shipment
- Available size from Φ2.0mm~
![standard Gundrill](/dcms_media/image/gundril_01.jpg)
![standard Gundrill](/dcms_media/image/gundril_02.jpg)
![standard Gundrill](/dcms_media/image/gundril_03.jpg)
Special Order Gundrills
Coated Drill(TiN,TiAIN)
![sample](/dcms_media/image/gundril_04.jpg)
It's suitable for drilling hard material like Stainless Steel and Titanium etc.
VR type drill
![sample](/dcms_media/image/gundril_05.jpg)
V shaped ditch(Road) on Carbide tip cuts the turning into small pieces and it can process high feed cutting.
Long tip drill
![sample](/dcms_media/image/gundril_06.jpg)
Radius Tip Drill
![sample](/dcms_media/image/gundril_07.jpg)
Radius tip for radius hole end finishing.
Right Angle Tip Drill
![sample](/dcms_media/image/gundril_08.jpg)
Right angle tip for right angle hole end finishing.
Double Brades Drill
![](/dcms_media/image/gundril_09.jpg)
Suitable for high machinable material like casted and aluminium works.
Drills for Machining Center
- Standard Delivery time 1month
- NC Lathe and Machining center use.
- We can make the driver for any standard chuck.
![マシニングセンター用ドリル](/dcms_media/image/gundril_10.jpg)
Extension Bar
High efficient Gun drill processing
High Productibity
Reduce the processing time by high feed cutting
![High Productibity](/dcms_media/image/gundril_11.jpg)

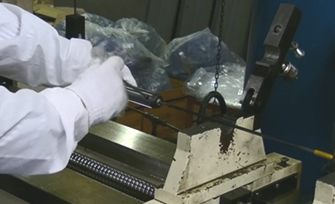

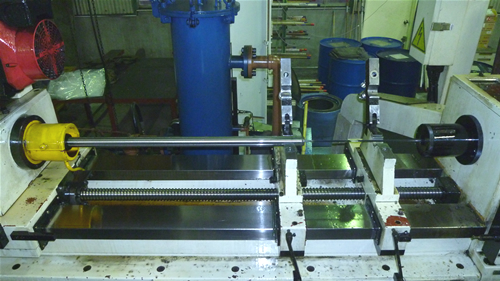

Extension bar prevents from deflection and enable high speed spining and feeding from the start.
![High efficient Gun drill processing](/dcms_media/image/gundril_13.jpg)
Cost Down
Extension Bar covers the dead zone of the Gundrill.
![Cost Down](/dcms_media/image/gundril_14.jpg)
Normal Gundrill machine has Dead zone( unusable area) on gundrills about 600mm length* where the drill rest divice and tip box are, Extension bar covers that dead zone and length of drill can be shortened, cost will be reduced.
Cost Down

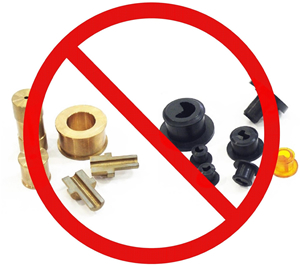

Saving the cost for drill accessories of each sizes.
![Cost Down](/dcms_media/image/gundril_15.jpg)
Rest bush and O/S set are no longer neccesary Saving the cost for each sizes drill.
*The dead zone differs depending on the machines.

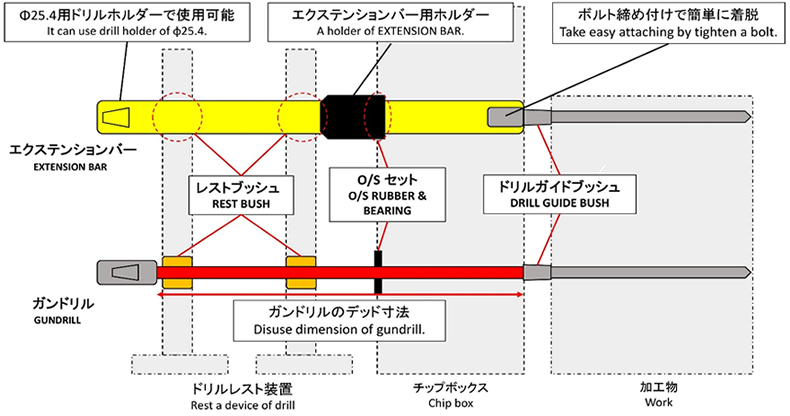

Structure of Extension bar
Gundrill accessories
We have wide line up of accessories for gundrills
- Standard Delivery time 3 weeks~
Drill guide bush SKD11
- Standard type
- Tangsten Carbide insert type
- Custom made for any types of Gundrill machine
Rest Bush Brass
- Standard type
- Small diameter with long length (L=70)
Oil Seal Rubber (O/S rubber)
Bearing
![Gundrill accessories](/dcms_media/image/gundril_17.jpg)
